Features
- Compact size
- 500 W spindle
- High precision stepping motor for more precise engraving
- Simple installation and operation
- PC controlled via parallel port
- Precision 1204 ballscrew
Technical Specifications
| Effective working travel | 390 × 280 × 55 mm |
| Max. workpiece dimensions | 390 × 280 <70 mm |
| Work table dimensions | 530 × 320 mm |
| Material thickness | < 70 mm |
| Stepping motor type | 57 two-phase 2.5 A, super low-noise |
| Spindle speed | 1000 ~ 8000 RPM |
| Engraving accuracy | > 0.05 mm |
| Interface | LPT |
| Operating voltage | AC 110/220 V |
| Size | 136 × 116 × 92 mm |
| Weight | 27 kg |
Package Contents

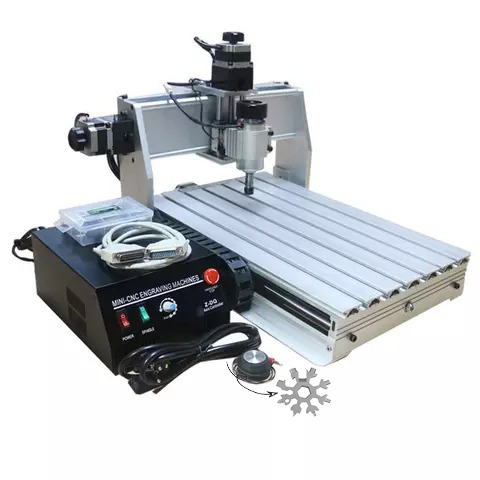

- CNC Router Engraver 3040Z-DQ – 1 pc.
- Control box – 1 pc.
- Axis motors – 4 pcs.
- LPT cable - 1 pc.
- Power cable – 1 pc.
- Tool box and tools – 1 pc.
- Software - 1 pc.
- User manual - 1 pc.
